Separated wine zones

Dual-zone documentation supports separate red/white wine planning; the project team confirms the final temperature settings for the selected order.

Front-facing presentation

Glass doors, internal lighting and tiered holders let buyers present bottles without opening the cabinet, useful for hospitality or showroom environments.

Cabinet-level coordination

Control position, shelf layout, drawers and ventilation clearances can be reviewed as one cabinet package instead of designing an open room wall. Dual-Zone Independent Microclimates: Independent digital touch microcomputer thermostats regulating separate upper (5–12°C) and lower (12–20°C) compartments. SUS 304 Food-Grade Construction: Certified SUS 304 stainless steel chassis and seamless interior liner with high-density CFC-free polyurethane insulation. Vibration-Isolated Compressor: Commercial high-efficiency compressor mounted on multi-stage silicone dampening bushings for ultra-quiet acoustic operation. Telescopic Beechwood Racks: Smooth-gliding telescopic wooden shelves crafted from solid European Beech, accommodating diverse bottle diameters.

Buyer and project fit

For restaurants, hotel suites, bars, showrooms and residential interiors that need controlled wine presentation in a defined cabinet footprint.

Structure and visible details

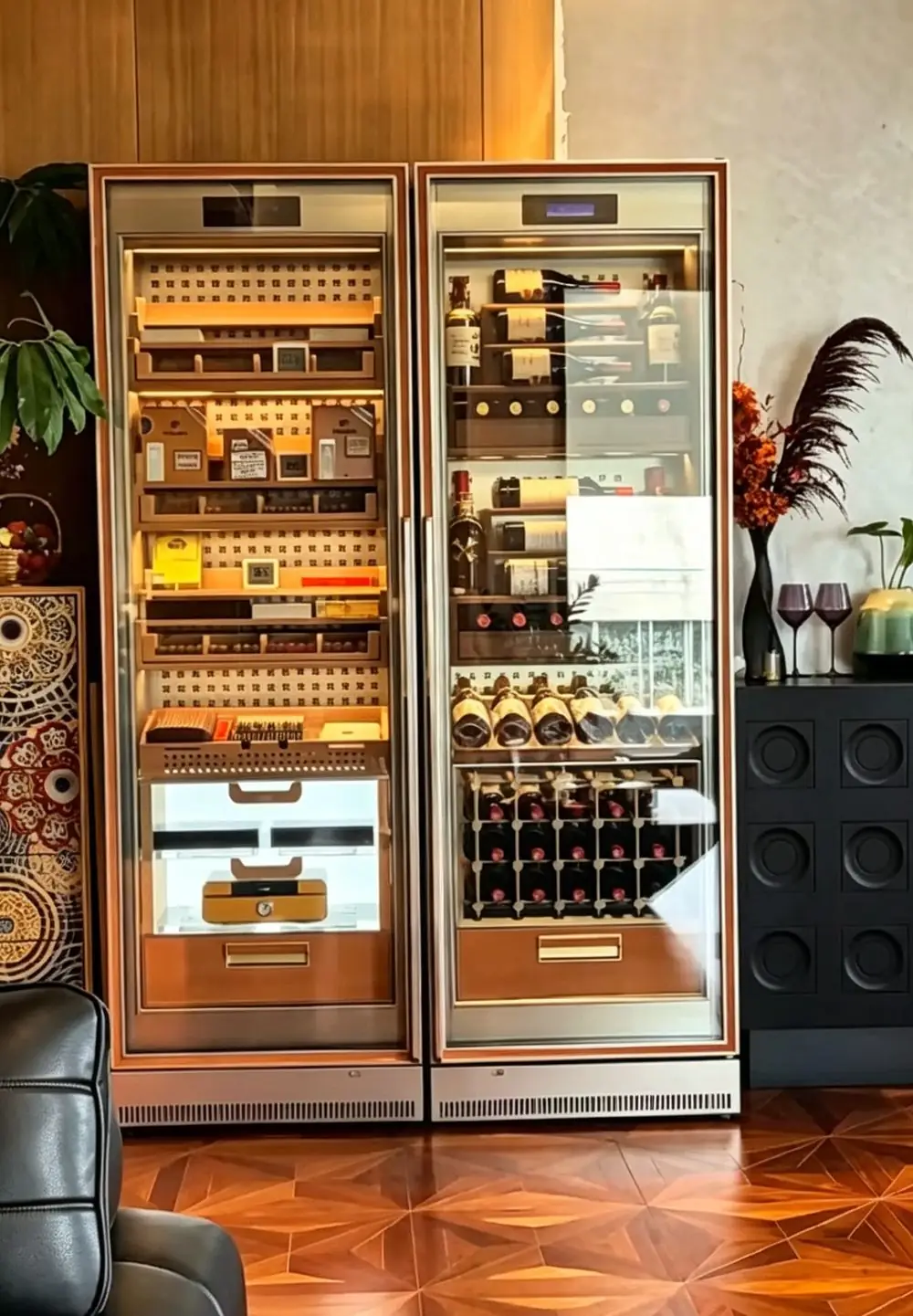

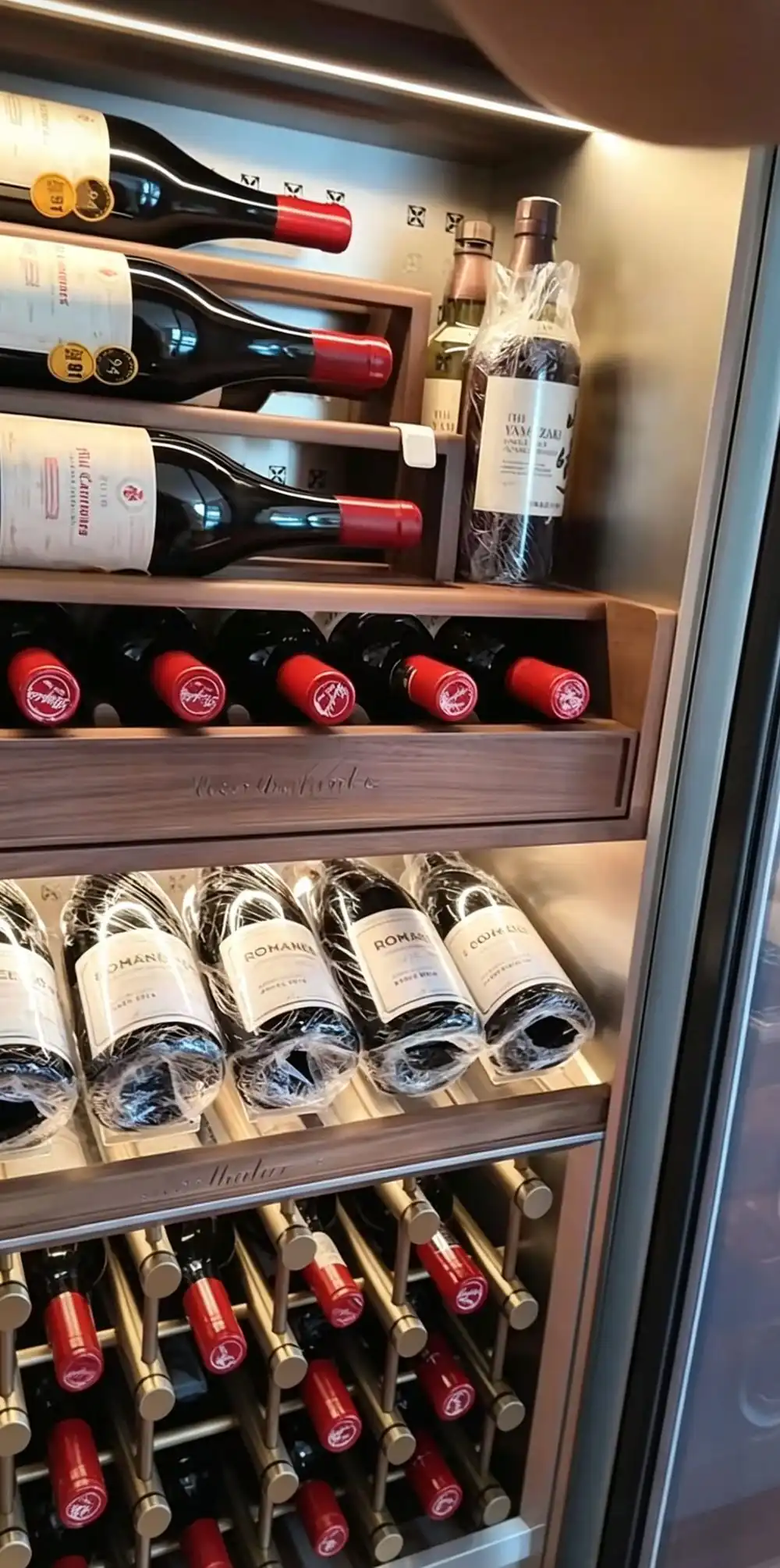

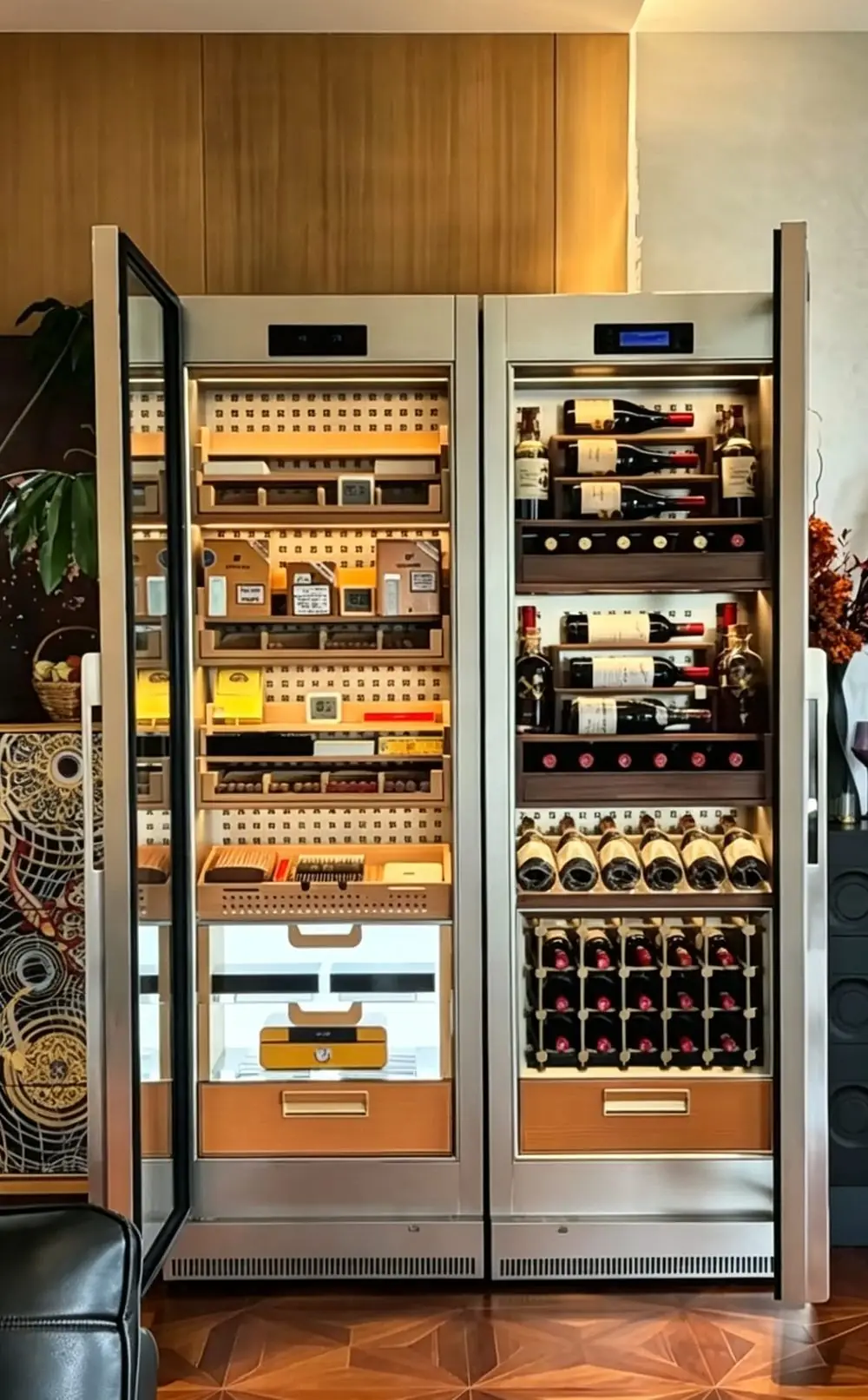

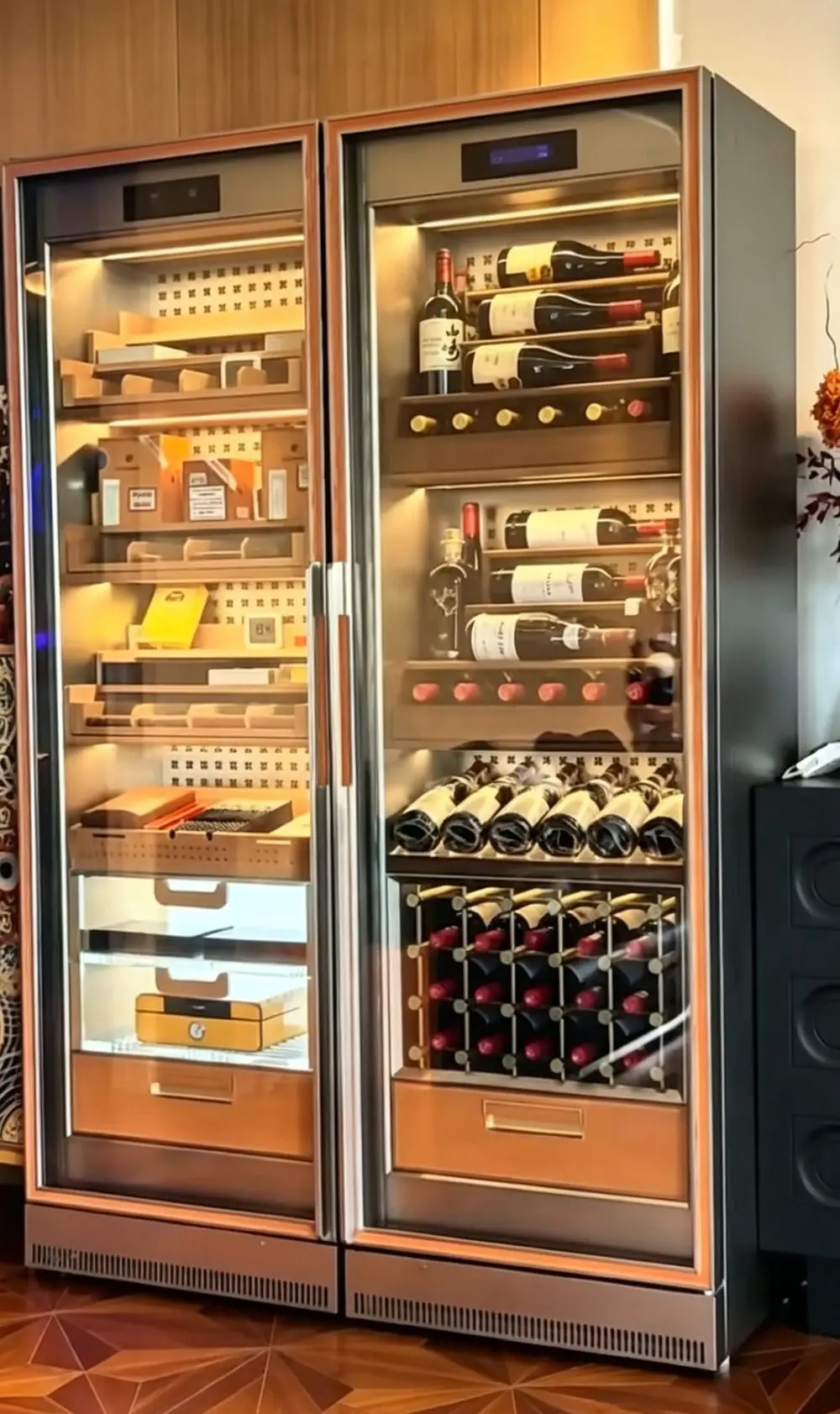

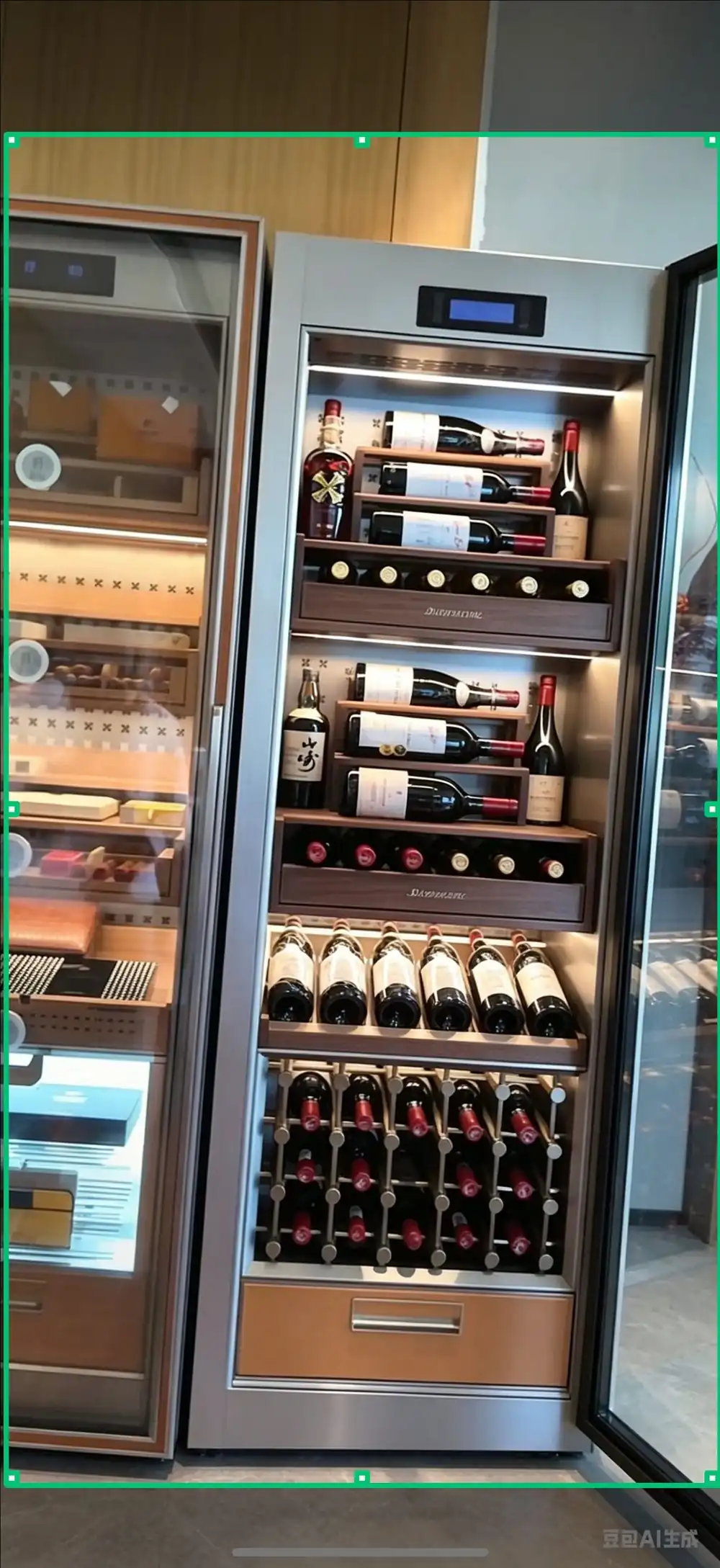

The images show a tall cabinet body with framed glass doors, a top control/display panel, illuminated internal bays, horizontal bottle shelves, a lower bottle grid and drawer-like storage at the base. One image shows two matching cabinets installed side by side.

Materials and confirmation boundary

The product record identifies stainless steel and glass. The gallery visibly shows a metallic cabinet exterior, framed glass fronts and wood-toned internal shelf components; exact inner material, glass build and finish code require confirmation.

Documented function

The product record identifies dual-zone cooling and a selectable 8–22°C range. The visible control displays support a temperature-control interface, but final settings, electrical specification and applicable climate package must be confirmed for the order.

Manufacturing approach

The manufacturing focus is cabinet coordination: door and frame alignment, control-panel position, shelf pitch, lower drawer/storage division, ventilation clearance and the side-by-side installation relationship shown in the gallery.

Application scene

The images support restaurant, hotel and premium residential display: a freestanding vertical cabinet beside a service counter, paired units in an interior, and close-up bottle presentation behind glass.

Project coordination

Send cabinet dimensions, available power, ventilation space, door swing, bottle mix, shelf/drawer needs, finish and whether units are paired. The factory confirms the control, cooling, glass and installation interface before quotation.

1. Material & Craftsmanship: SUS 304 Stainless Steel & Thermal Insulation

The RM-009 is fabricated from certified SUS 304 stainless steel for both the exterior architectural chassis and the interior hygienic cabinet liner. The cabinet walls are high-pressure injected with high-density, CFC-free polyurethane foam (45mm thickness) to achieve exceptional thermal insulation and minimize compressor run cycles. Structural door frames feature double-pane tempered glass units with Low-E reflective coatings that block 99% of harmful ultraviolet radiation while preserving optical clarity into the illuminated cabinet interior.

2. Customization Options: PVD Titanium Colors & Slide-Out Wooden Shelving

We offer comprehensive customization for luxury interior integration. The exterior stainless steel surfaces can be customized with high-vacuum PVD titanium coatings in Champagne Gold, Rose Gold, Matte Black Titanium, Vintage Bronze, or Satin Brushed Stainless Steel. Internal shelving features telescopic slide-out beechwood racks with ball-bearing runners, horizontal display rows, and angled presentation shelves. Top and side concealed LED light strips feature warm 3000K illumination.

3. Application Scenarios: Hotel Dining Rooms, VIP Lounges & Luxury Kitchens

The RM-009 is engineered for demanding commercial and residential settings: 1) Five-Star Hotel Dining & Bars: Enhancing front-of-house wine merchandising with illuminated glass facades; 2) Luxury Villa Dining Rooms & Penthouses: Built-in undercounter or freestanding installation matching bespoke cabinetry; 3) Private Executive Club Lounges: Providing sommeliers with instant access to curated white and red selections; 4) Boutique Wine Bars.

4. Dual-Zone Refrigeration Engineering & Acoustic Quiet

The RM-009 incorporates advanced dual-circuit refrigeration with separate electronic expansion controls and digital touch microcomputer panels. The upper zone is optimized for Champagne and white wines (5°C to 12°C), while the lower zone is tailored for aging and serving red wines (12°C to 20°C). Commercial-grade compressors are mounted on dual-deflection silicone dampening bushings, keeping operational acoustic levels below 38 dB.

5. Manufacturing Standards, CE Certification & Factory Testing

Manufactured in our CE-certified Foshan facility (Certificate No. M.2026.206.C145111), every RM-009 wine cabinet undergoes 48 hours of continuous refrigeration load testing, door gasket thermal imaging, electrical hipot safety inspection, and cosmetic QA/QC verification before packing in export plywood crates.

Procurement & Quotation Requirements

Submit your required cabinet dimensions, bottle capacity requirements, PVD finish direction, and project delivery location via https://rmroyalmetal.com/contact for a factory-direct quotation.

Export Packaging & Logistics

Each RM-009 unit is packed with PE protective film, expanded corner foam protectors, and enclosed in a heavy-duty export-grade plywood crate with structural forklift skids.
